Combining the rugged appeal of our mountain bikes with the comfort and adaptability of our touring machines, it's the go-anywhere two-wheeled companion that'll slot right into your life - and there's even a trapeze frame version, so everyone can find the perfect fit. The advanced hydroforming that enables our engineering team to build such an elegant, tough and rigid frame is also your guarantee of long-lasting safety and performance, thanks to the stringent standards of our in-house testing processes. The powerful and reliable Bosch drive unit, neatly contained in its own housing, is powered by the battery slotted neatly into the custom down tube.

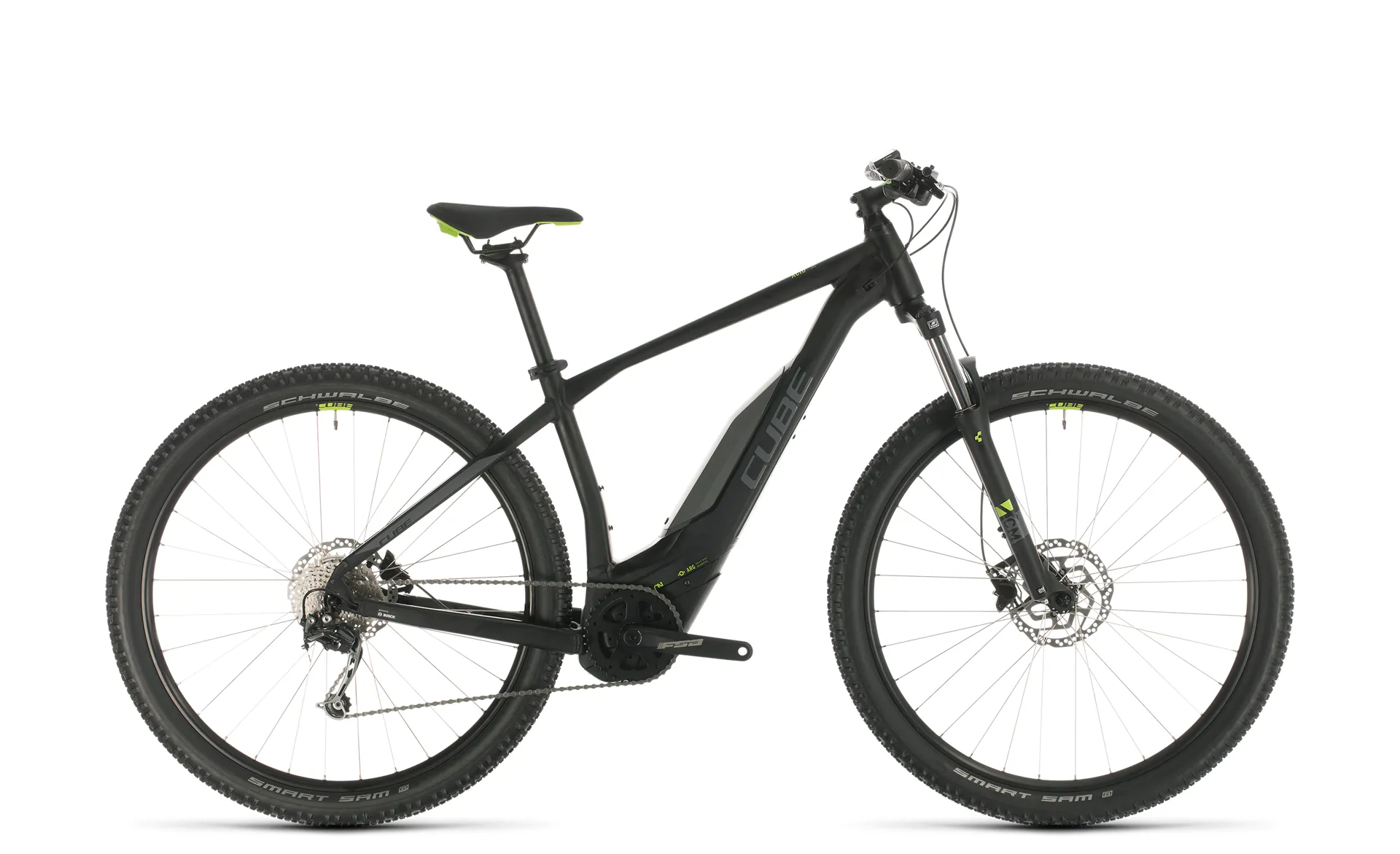

Our evergreen Acid Hybrid ONE continues to set the standard for a versatile, affordable and rugged Bosch e-bike. Combining the rugged appeal of our mountain bikes with the comfort and adaptability of our touring machines, it's the go-anywhere two-wheeled companion that'll slot right into your life - and there's even a trapeze frame version, so everyone can find the perfect fit. The advanced hydroforming that enables our engineering team to build such an elegant, tough and rigid frame is also your guarantee of long-lasting safety and performance, thanks to the stringent standards of our in-house testing processes. The powerful and reliable Bosch drive unit, neatly contained in its own housing, is powered by the battery slotted neatly into the custom down tube. Working seamlessly with the wide-ranging, easy-to-use Shimano 9-speed gears, they provide quiet, unobtrusive and smooth assistance to back up your pedalling. Wide Schwalbe Smart Sam tyres - easily accommodated by a revised frame design with extra clearance - provide ample grip, easy rolling and smooth comfort on any surface. Our Natural Fit saddle and carefully selected bars, stem and grips ensure you'll be comfortable on any ride, long and short. Shimano's powerful MT200 hydraulic disc brakes serve up plenty of stopping power in all weathers, and the Suntour suspension fork adds 100mm of bump- and pothole-smoothing travel to the mix. From city streets and the daily commute to weekend off-road exploring, the Acid Hybrid ONE has got it all covered.
frame Aluminium Superlite, Advanced Hydroforming, Agile Ride Geometry, Double Butted, Tapered Headtube, Internal Cable Routing, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points
size 15", 17", 19", 21", 23", Trapeze: 15", 17", 19"
fork SR Suntour XCM ATB Coil, 100mm
headset FSA Orbit 1.5B ZS-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
stem CUBE Performance Stem Pro, 31.8mm
handlebar CUBE Rise Trail Bar, 700mm
grips CUBE Performance Grip
rear derailleur Shimano Deore RD-M592-SGS, 9-Speed
shifters Shimano SL-M2010-9R, Rapidfire-Plus
brake system Shimano BR-MT200, Hydr. Disc Brake (180/180)
crankset FSA CK-602, 38T, 175mm
chain KMC X9
colour black´n´green
cassette Shimano CS-HG201, 11-36T
front hub Shimano HB-TX505, QR, Centerlock
rear hub Shimano FH-TX505, QR, Centerlock
rims CUBE EX23, 32H, Disc, Tubeless Ready
tyres Schwalbe Smart Sam, K-Guard, 2.35
pedals CUBE PP MTB
saddle Natural Fit Sequence
seat post CUBE Performance Post, 30.9mm
seatclamp CUBE Varioclose, 34.9mm
battery Bosch PowerPack 500
drive unit Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt)
display Bosch Purion
charger Bosch 2A
22,1 kg
