The Smuggler takes the 29er in a new direction with a short travel platform that isn’t short on versatility.
The Smuggler takes the 29er in a new direction with a short travel platform that isn’t short on versatility.
Transition

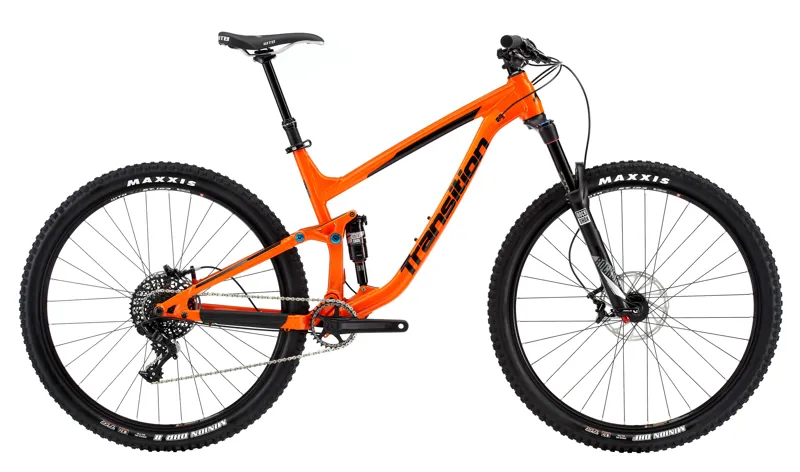

2016 Transition Smuggler Full Suspension Mountain Bike

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

2016 Transition Smuggler Full Suspension Mountain Bike

Season:2016

Brand:Transition

Code:01.16.11.3021.

Aggressive geometry with a slack 67.5 head angle and roomy cockpit let you push the bike hard while the 29 wheels smooth out rough terrain. The short 436mm chainstay and 115mm of progressive suspension keep the bike agile, responsive and playful for maximum fun on whatever trail you choose.

It’s no secret that 27.5 wheels get all the attention these days, but we haven’t forgotten about the big wheel, and we love the way they ride when done correctly. We wanted the Smuggler to give the rider all the benefit of a 29 wheel without any of the negatives. That is a pretty lofty goal, but we think the Smuggler is our best 29er ever. The 29 wheel is awesome for traction, control and confidence, but too much travel or the wrong geo and the bike will feel sluggish on the trail. Many companies run steeper head angles or a shorter wheelbase to add agility, but these are a poor substitute for a proper head angle, weight balance and room to move around on the bike. Our shorter travel frame gives you a direct connection to the ground and super short 436mm chainstay length with stiff rear triangle will make you forget you are on “wagon wheels”. Push the bike into rough, rooty and technical terrain and the big wheels do their work to keep you moving forward and smooth out the trail under you. This bike will go much further than the travel numbers would suggest.

Technical Information

Features:

  • Progressive Geometry – Long, Low and Slack
  • Giddy Up Link Suspension, 115mm Rear and 130mm Front
  • Integrated Rubber Chainstay Protection
  • Collet Style Main Pivot Hardware
  • ISCG05 Chainguide Mounting, No Front Derailleur Support
  • Syntace X12 Rear 142mm Axle and Universal Transition Derailleur Hanger
  • Full Size Water Bottle Fits Inside Front Triangle
  • User Friendly 73mm Threaded Bottom Bracket
  • Internal Cable Routing, Including Stealth Seatpost

Specs

  • RockShox Sektor Gold RL 29 130mm Fork
  • RockShox Monarch RT Debonair Rear Shock
  • SRAM GX 1x10 Type 2.1 Drivetrain w/ 42t Hive Cog, Shimano Deore Brakes
  • RaceFace Aeffect Cinch Crankset, Ride 35 Bar & Ride 35 Stem
  • Maxxis Minion DHF/DHR II Tires, WTB Volt Saddle, KS eTen Integra Post
  • WTB Frequency STP i23 29 Rims w/ Shimano Deore Hubs
