The world's best-loved mountain bike gets a major capability boost.
The world's best-loved mountain bike gets a major capability boost.
Trek

2018 Trek Fuel EX 5 29er Aluminium Full Suspension Mountain Bike

Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

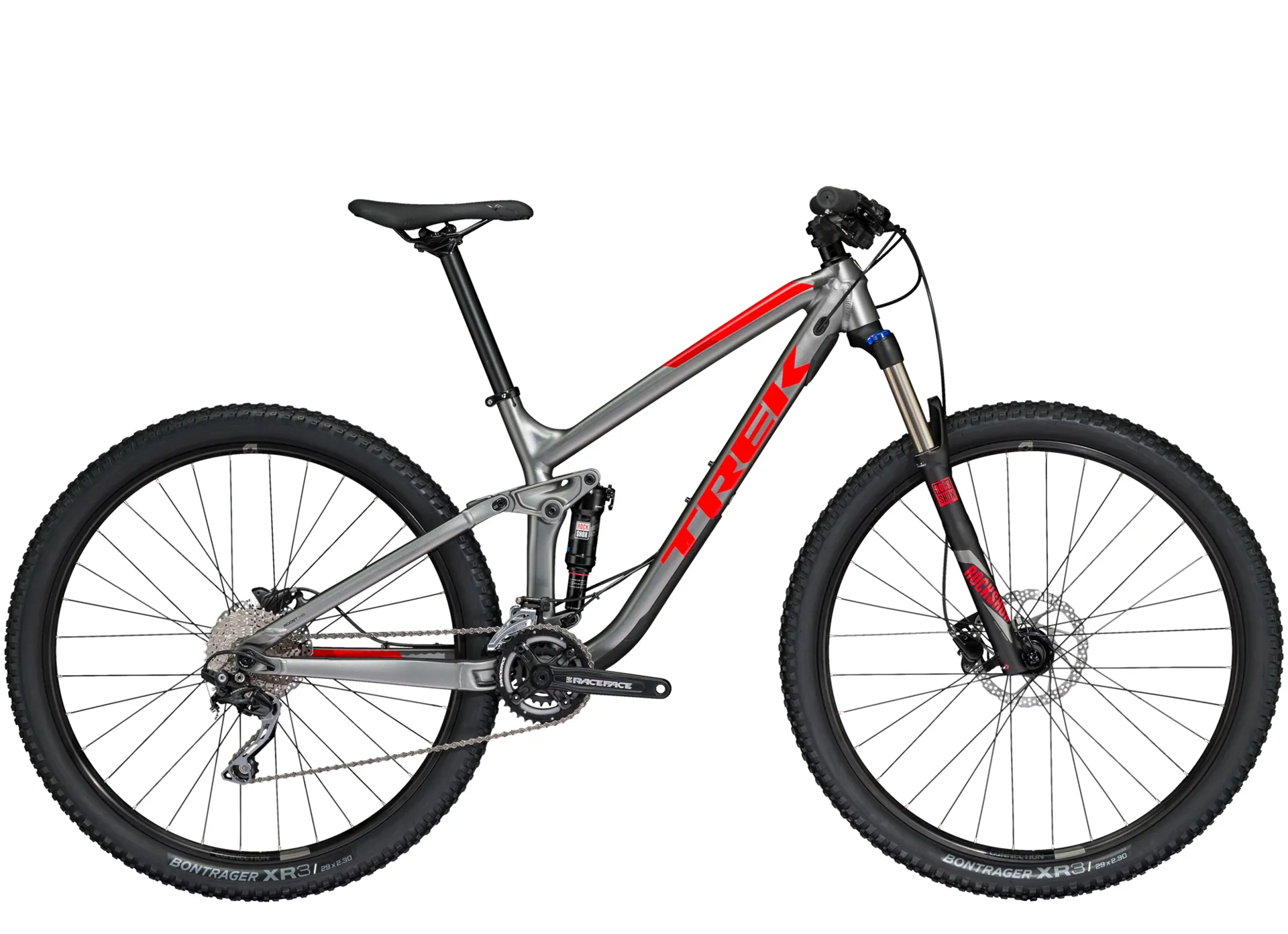

2018 Trek Fuel EX 5 29er Aluminium Full Suspension Mountain Bike

Brand:Trek

Code:2132600-20182018MATANT

The world's best-loved mountain bike gets a major capability boost. With more travel, a more aggressive geometry, and 29" or 27.5" mid-fat options, Fuel EX is the one go-to trail bike for all riders.

Want a rugged, capable long-travel trail bike with the sprightly manners of an XC bike? Get it with Fuel EX. Fuel EX blends the best of both worlds in one uncompromising package.

Capable and stiff 130 mm frame is 29˝ and 27.5+ compatible

Boost148/110: stronger wheels, more tyre clearance, shorter stays

Exclusive suspension tech with ABP and Full Floater

Straight Shot stiffness, Knock Block frame defence

Technical Information
Frame Alpha Platinum Aluminium, ABP, Boost148, Knock Block steerer stop, Full Floater, EVO link, E2 tapered head tube, Mino Link, Control Freak internal routing, downtube guard, PF92, ISCG 05, G2 Geometry, 130 mm travel
Front suspension RockShox Recon Silver, Solo Air spring, Motion Control damper, E2 tapered steerer, G2 Geometry w/51 mm offset, Boost110, 130 mm travel
Rear suspension RockShox Deluxe RL, 210x52.5 mm
Wheels
Front Hub Formula Alloy DC511, Boost110
Rear Hub Bontrager sealed bearing alloy axle, Boost148
Rims Bontrager Connection 32-hole double-walled
Tires Bontrager XR3, 29x2.30"
Drivetrain
Shifters Shimano Deore M6000, 10-speed
Front derailleur Shimano Deore M6020
Rear derailleur Shimano Deore M6000, Shadow Plus
Crank Race Face Ride, 36/22
Bottom bracket PF92
Cassette Shimano HG500, 11-42, 10speed
Chain KMC X10
Pedals Not included
Components
Saddle Bontrager Evoke 1.5
Seatpost Bontrager alloy, 2-bolt head, 31.6mm, 12 mm offset
Handlebar Bontrager alloy, 31.8 mm, 15mm rise, 750 mm width
Stem Bontrager Rhythm Comp, Knock Block, 31.8 mm, 0 degree, 60 mm length
Grips Bontrager Race
Headset Knock Block Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
Brakeset Shimano M315 hydraulic disc



Sizing Information
