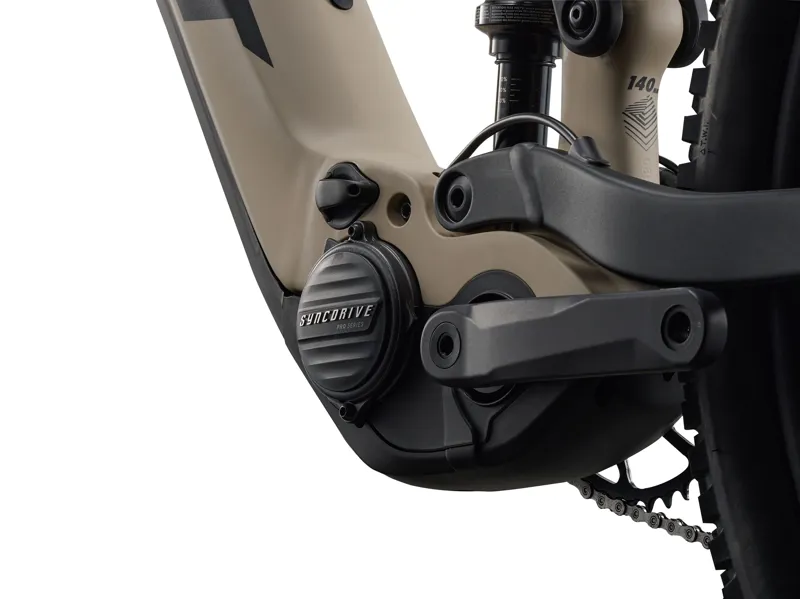

Motor - Giant SyncDrive Pro3X 100Nm, PedalPlus 6-Sensor technology
Controller - Giant RideControl Dash 2, Smart Assist automatic mode, 5 support levels

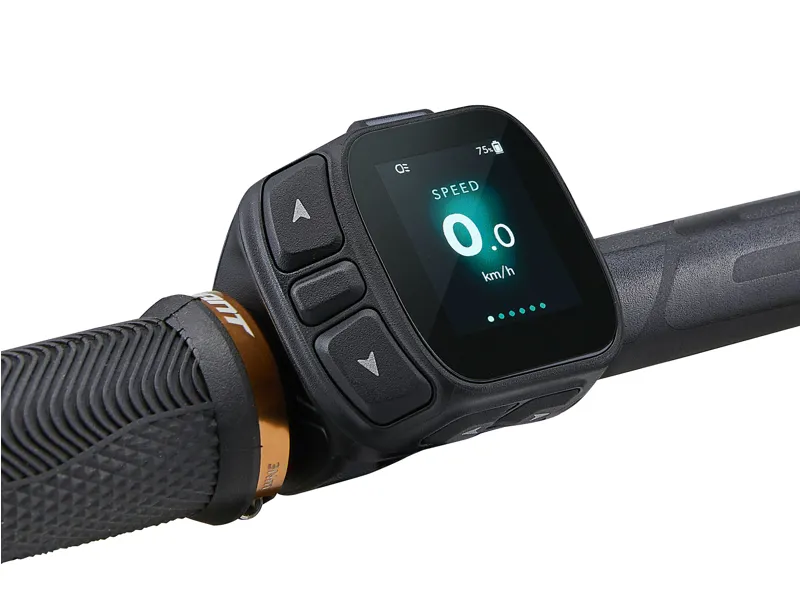

Display - Giant RideControl Dash 2, full color LCD display
Battery - Giant EnergyPak 800Wh
Charger - Giant EnergyPak 4A smart charger
Sizes - S, M, L, XL
Frame - ALUXX SL-grade aluminum, 140mm travel FlexPoint linkage driven suspension system, 148x12 Boost rear axle, UDHTM Universal Derailleur hanger, KSA40 compatible, 185x52.5mm shock, 1.5~1.8" headset (ZS62/ZS72)

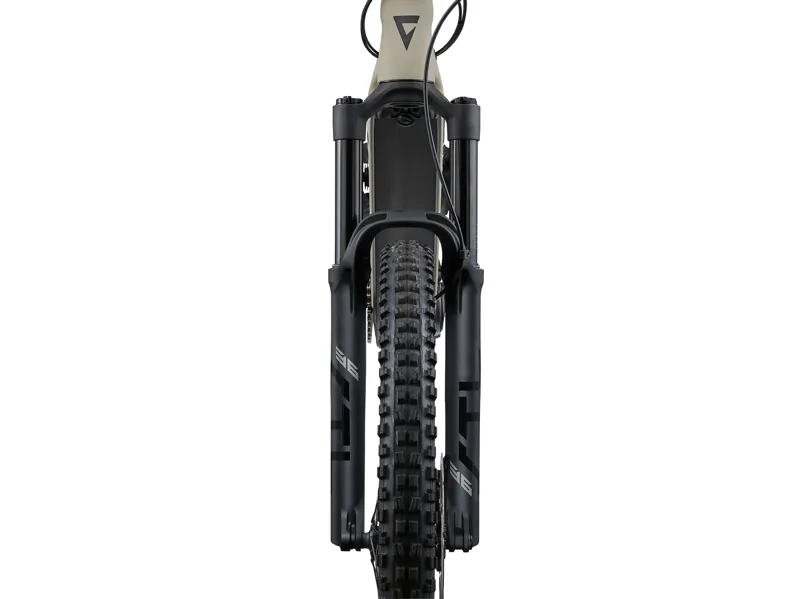

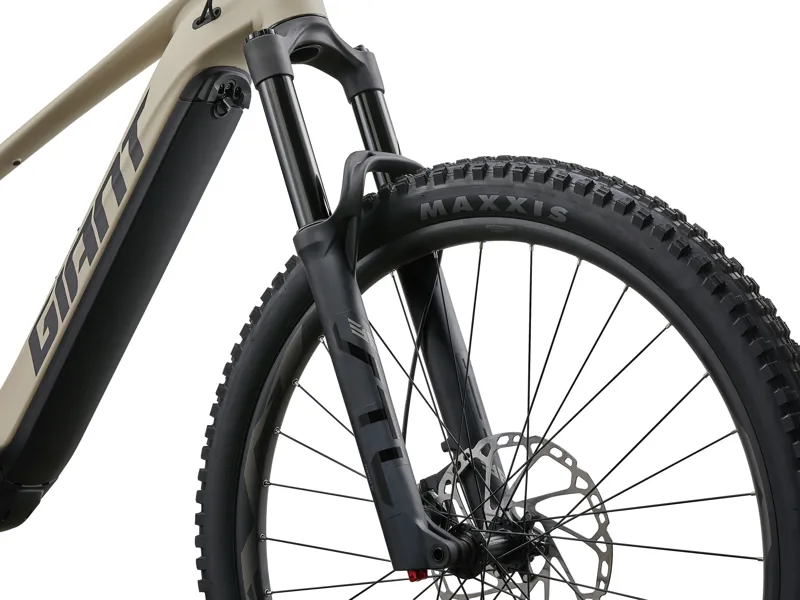

Fork - Giant STL 36 Air, 150mm travel, 5-position compression adjust, tapered steerer, 72mm crown, e-bike optimized, 110x15mm Boost axle, full fender compatible
Shock - Giant Crest FloTrac, 3-position lever, e-bike optimized, 185x52.5mm Sag recommendation: 30% (15.75mm)
Handlebar - Giant Connect TR35, 20mm Rise, 35x760mm [S], 35x780mm [M-XL]
Grips - Giant Tactal Pro single lock-on
Stem - Giant Contact SL 35
Seatpost - Giant Contact Switch AT travel adjust dropper seatpost (S:110~140mm, M:140~170m, L/XL: 170~200mm)
Saddle - Giant Contact Ergo Trail
Pedals - Large platform pedal, 28-pins, PP cage, Steel axle
Shifters - Shimano Cues LinkGlide
Rear Derailleur - Shimano Cues LinkGlide, 10-speed, Shadow+
Brakes - Shimano Deore, BR-M420, hydraulic disc, 4-piston, 220mm [F] 203mm [R]
Brake Levers - Shimano Deore, BL-M401
Cassette - Shimano Cues LinkGlide, 10-speed, 11-48T
Chain - Shimano LinkGlide
Crankset - Forged aluminum crank arms
Rims - Giant AM30, Tubeless ready, 30mm inner width
Hubs - Shimano TC500 Boost, Center-Lock, 15x110mm [F] 12x148mm [R]
Spokes - Stainless Steel
Tyres - Maxxis Minion DHF 29X2.50"" WT Foldable, TLR, EXO [F] Maxxis Dissector 29X2.40"" WT Foldable TLR EXO [R]
Lock - Torx 25 Battery Lock with built-in Torque limiter
Fender/Chainguard - MRP 1x HD guide, CS e-Mount, 32~38T Adjustable
Max Chainring Size - Direct-mount steel 36T (maximum: 38T)
Weight
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
